MaxxECU Mini Standard Kit 😍❤️🏎️

Advanced entry-level engine control system for up to 4 sequential cylinders. Up to 8 in wasted spark.

**Features:**
- Built-in MAP sensor (up to 3 bar / 43.5 psi of boost)
- Easy to use with MTune PC software
- Compact and water-protected aluminium case
- Perfect for small displacement engines and motorcycles

**Target Engines:**
- All 1-4, 6, and 8 cylinder engines
- Up to 4 cylinders fully sequential (with HOME signal)
- Up to 8 cylinders in wasted spark

**Inputs:**
- Intake Air Temp (IAT)
- Coolant Temp (CLT)
- Throttle Position Sensor (TPS)
- 1 Trigger input (VR/Hall with automatic level detection)
- 2 Digital Inputs
- 2x 0-5V Analog Inputs
- Built-in 400kPa MAP sensor

**Outputs:**
- 4 Injector Outputs
- 4 Ignition Outputs (5V)
- 4 General Purpose Outputs (2A each)

**Technical Highlights:**
- CAN bus support for expansion
- USB tuning with MTune software
- 8MB internal logging at 1000Hz
- ARM Cortex-M3 @ 120MHz
- Ignition resolution: 0.1°
- Injector resolution: 0.001ms
- Water-protected aluminium case (85×120×43 mm, 245g)

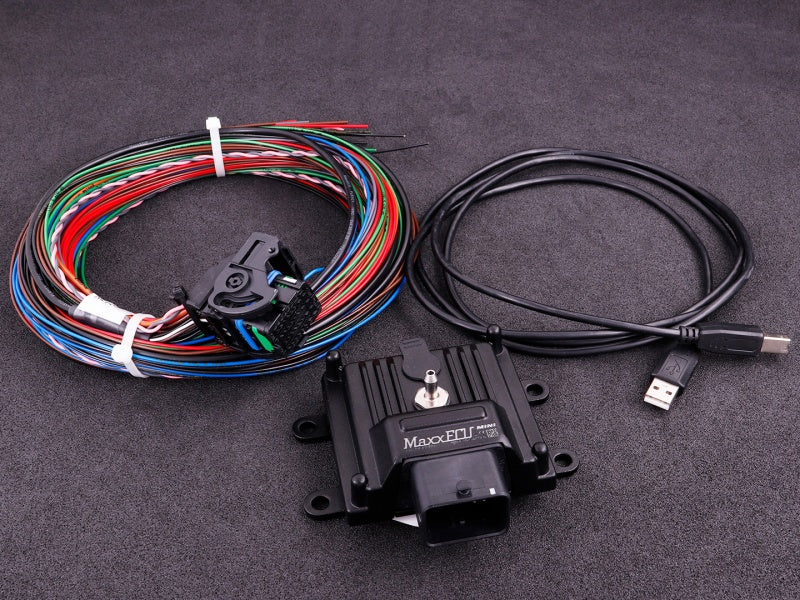

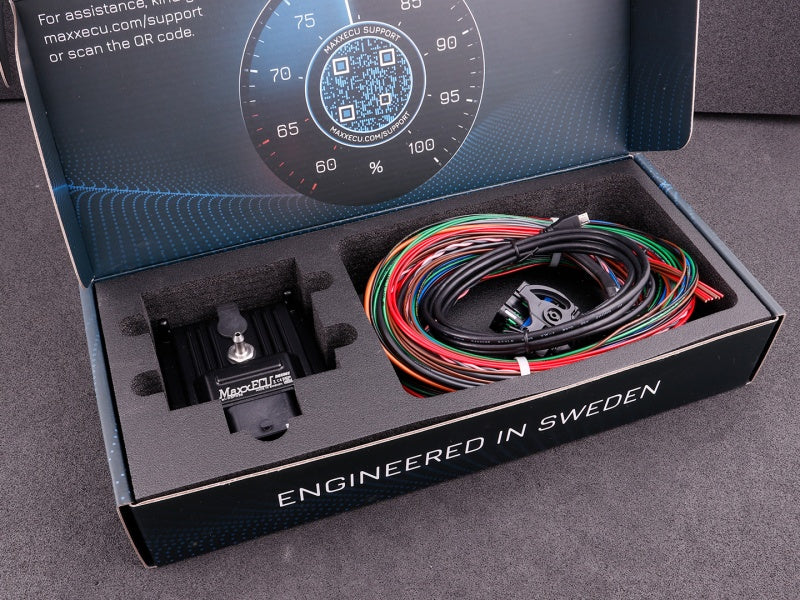

**Included in the Kit:**
- MaxxECU Mini ECU
- USB cable
- Quick start guide
